Mercury SmartCraft Connect 8M0173703 Level 3 - Multiple Engine, Under Helm Mount, Compatible with Garmin and Raymarine Displays

Coming June 2026

he Mercury SmartCraft Connect module turns your Garmin or Raymarine display into a centralized information hub for your boat by integrating the VesselView interface. Once installed, you will be able to easily monitor all vital engine data as well as access engine control features from your chartplotter. In addition, you will be able to to view live engine data and performance data, track fuel burn, watch helpful content, plan maintenance and even share engine data with a preferred Mercury dealer through the Mercury Marine App. SmartCraft Connect Mobile is compatible with 40hp and higher Mercury and MerCruiser engines model year 2004 and newer, 25hp and higher model year 2022 and newer, plus Avator electric outboards*. The Mercury Marine app is free to download for iOS and Android devices.

• Enable NMEA connection to Garmin & Raymarine displays as well as wireless connectivity with the Mercury Marine app
• Live engine data, fuel tracking, digital gauges and more to a mobile device and your Garmin or Raymarine display
• Track maintenance in the app and even share engine data with a preferred dealer to help make service more convenient

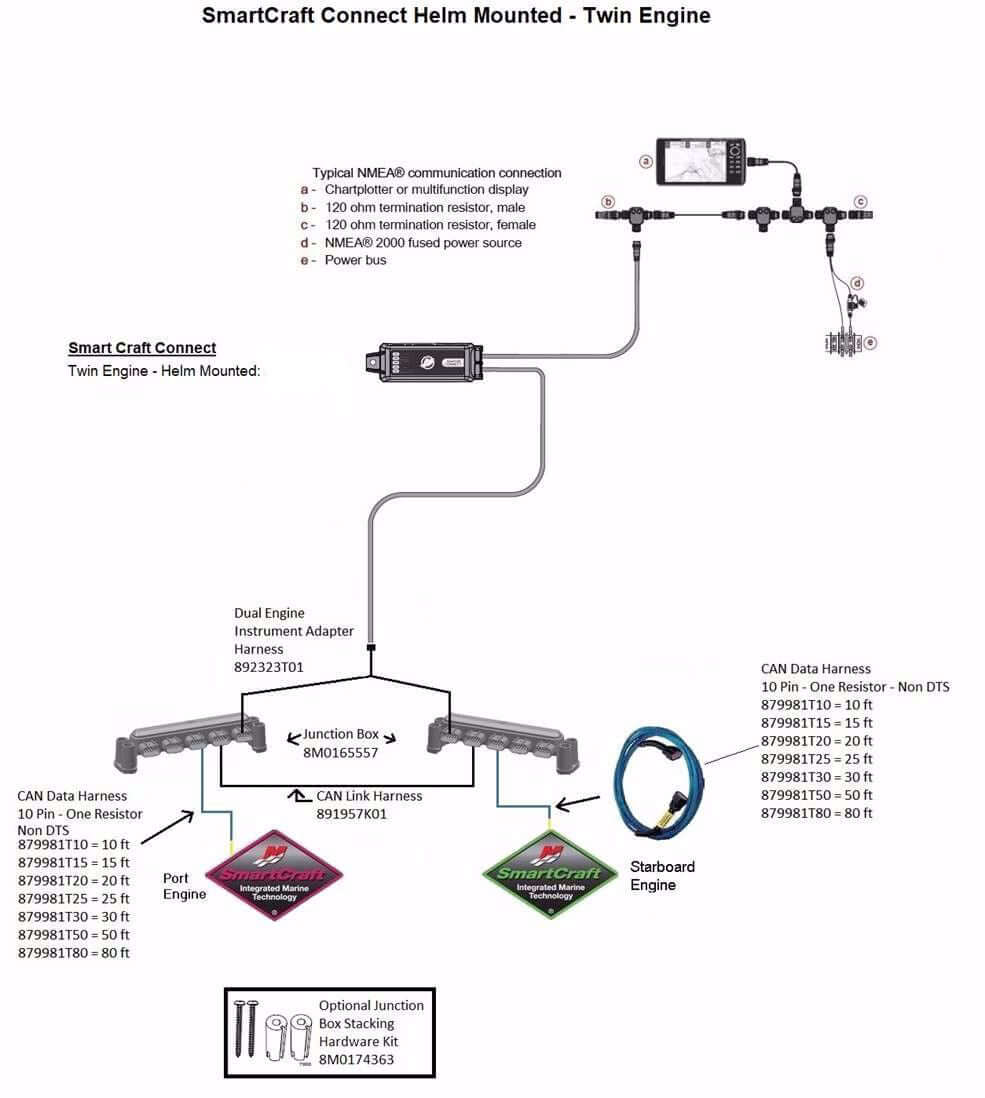

• Plug-and-play under helm installation for Multiple Mercury engines; Avator 7.5e installation should be handled by a dealer
• Compatible with Mercury and MerCruiser engines 2004 and newer, 40hp and above; 2022 and newer, 25hp and above; and Avator electric outboards
• Compatible with Garmin GPSMAP & TD50 on software 24.1 & up NMEA2000 capable ECHOMAP on software 17.1 & up
• Compatible with Raymarine All Chartplotters running LightHouse 4.1 onward

This device will deliver VesselView functionality including engine performance data and alerts on the same screen as your compatible Garmin, Raymarine, Simrad NSX or NSS 4 GPS MFD chartplotter and sonar.

This device enables you to DISPLAY information ONLY on your MFD.  NOTE: VesselView Link and SmartCraft CONNECT cannot be used together on the same network. You CAN use this device by installing a separate dedicated NMEA 2000 backbone.

• Simple install. CAN P and CAN H gateways consolidated into a single device.
• Easy configuration.
• The Mercury Marine app is free to download for iOS and Android devices. Available for IOS and Android on the Apple store or Google Play store.
• Track engine performance
• Display engine data
• Bluetooth and Wi-Fi

This device can be configured/set up by the consumer using the SmartCraft app.
