Quad Lock 360 Flexible Adhesive Base

Quad Lock Flexible Adhesive Base is suitable for mounting to flat or curved surfaces.

Using a super secure 3M Adhesive, the Flexible Adhesive Base has 4 tabs which can be bent to match the curved surface.

Plus, a 10 mm Spacers and Screws are supplied for connecting the spacer to a Quad Lock 360 HEAD or ARM.

Features:

• Made from tough nylon construction
• Can be used in a concave or convex manner
• Renowned 3M Adhesive for extra strong grip
• Adhere to smooth, non-textured, non-porous surfaces

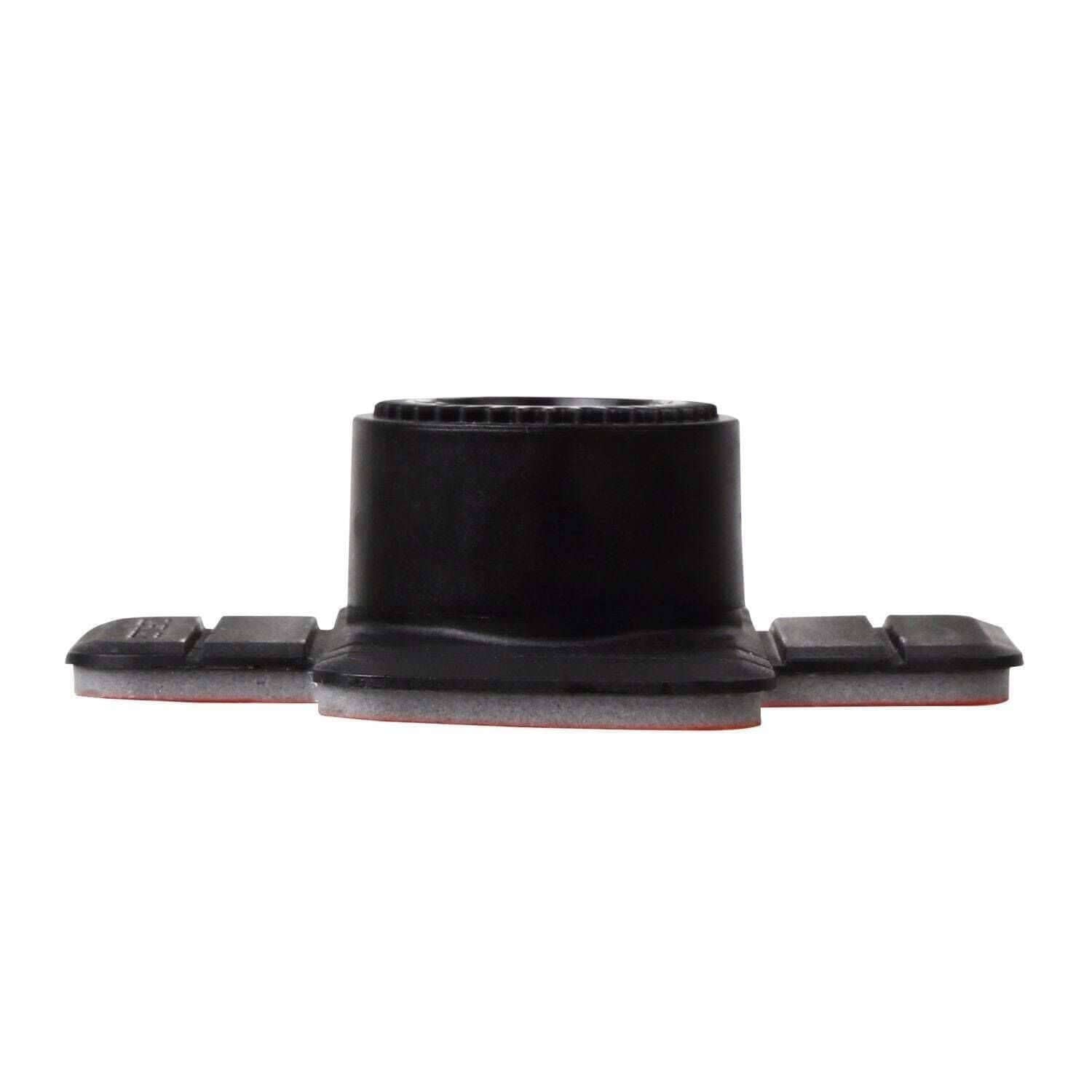

• Dimensions - 60 mm (L) x 60 mm (W) x 18.3 mm (H)
• Each tab is 28 mm wide and has 2 grooves (allow to grip to curved surfaces less than 180 degrees)

Compatible with:

• All Quad Lock 360 Arms and Heads
• Quad Lock Weatherproof Wireless Charging Head

Surface Guidelines:

• Recommended -
  • Uncoated Glass (Windshields...)
  • Plastics (PC, PVC, Nylon, Acrylic...)

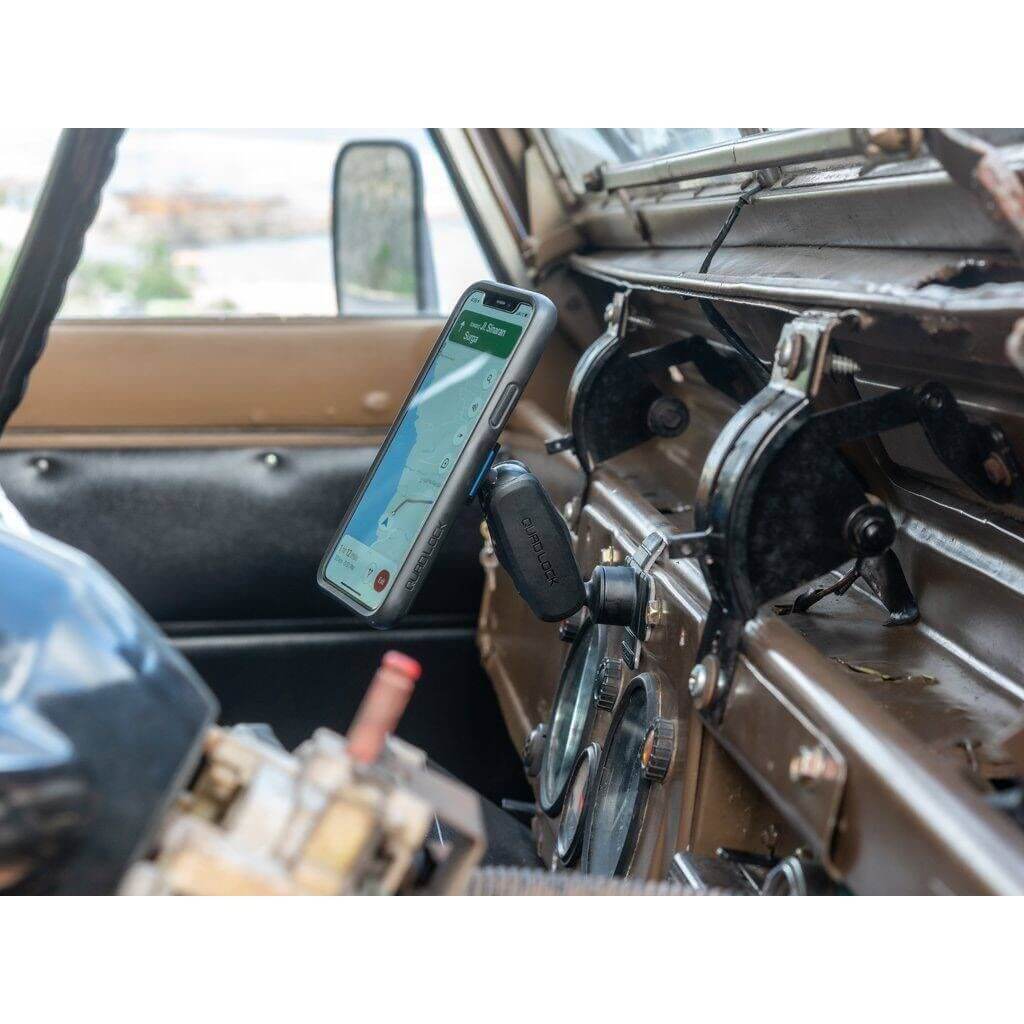

  • Metal (Vehicle bodies...)

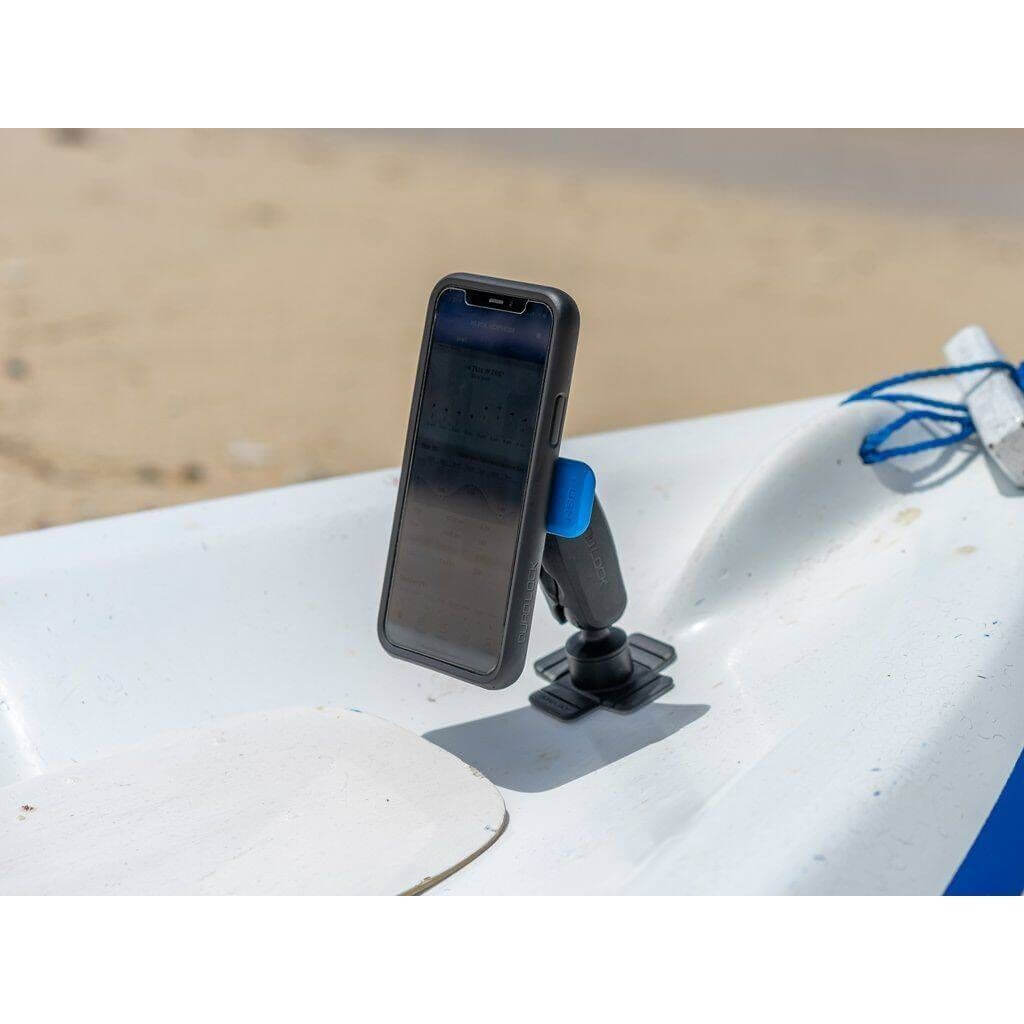

  • Fiberglass (Boat trim...)
  • Sealed wood
• Not Recommended -
  • Rubber, TPU, TPE
  • Leather
  • Silicone
  • Soft touch coating or paint
  • Low surface energy plastics such as Polypropylene (PP), Polyethylene (PE), Acetal, HDPE
  • Unsealed wood

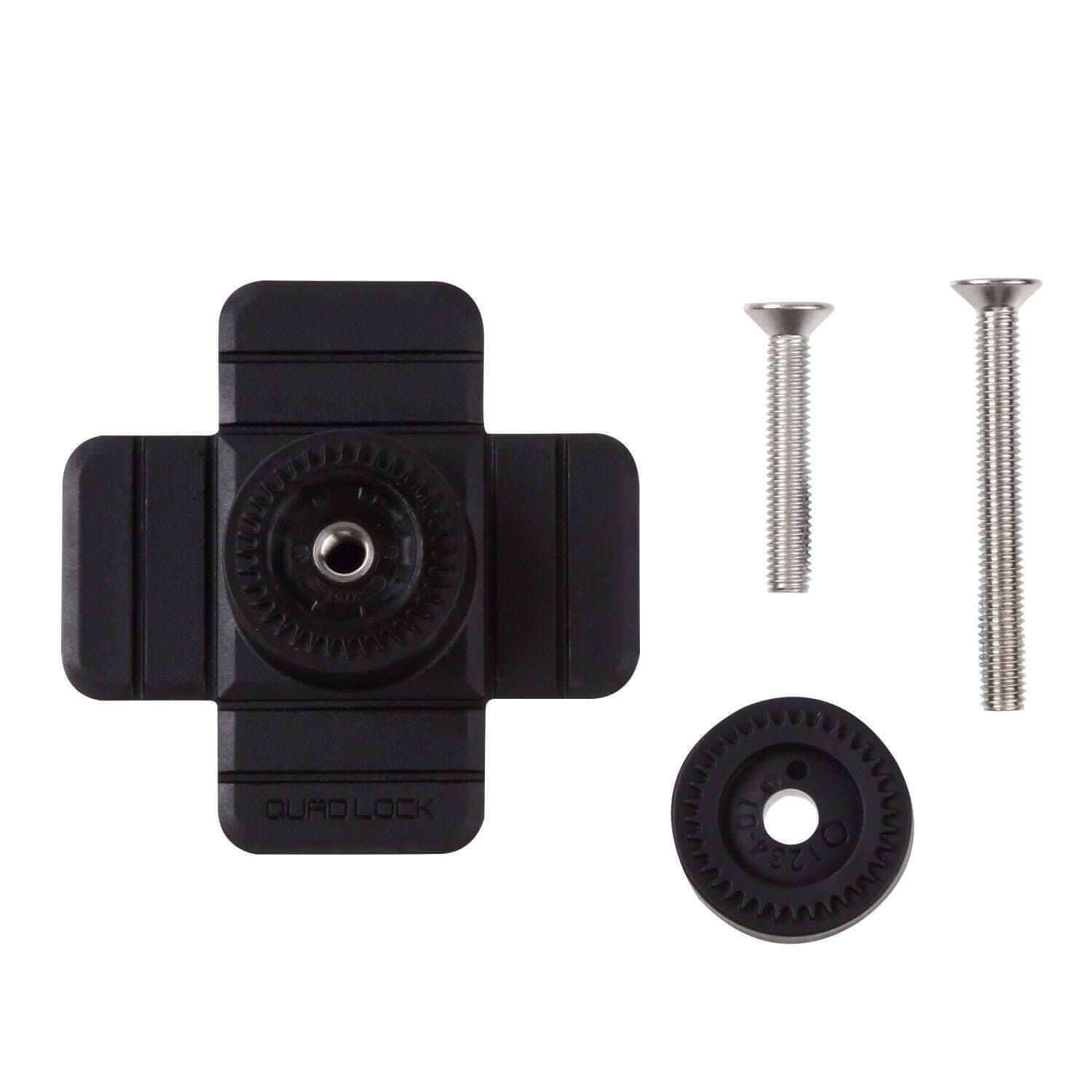

Included:

• 1 x Flexible Adhesive Base
• 1 x 10 mm Spacers
• 1 x M5 x 30 screw (for connecting Spacer to Lever Head or 360 Arms)
• 1 x M5 x 45 screw (for connecting Spacer to Weatherproof Wireless Charging Head)
• 1 x Isopropyl alcohol wipe

Notes:

• Not intended for severely curved surfaces (eg. 180 degrees)
• Not recommended on Motorcycles, scooters, ATVs, or anything that causes high vibrations or receives constant exposure from outdoor elements.

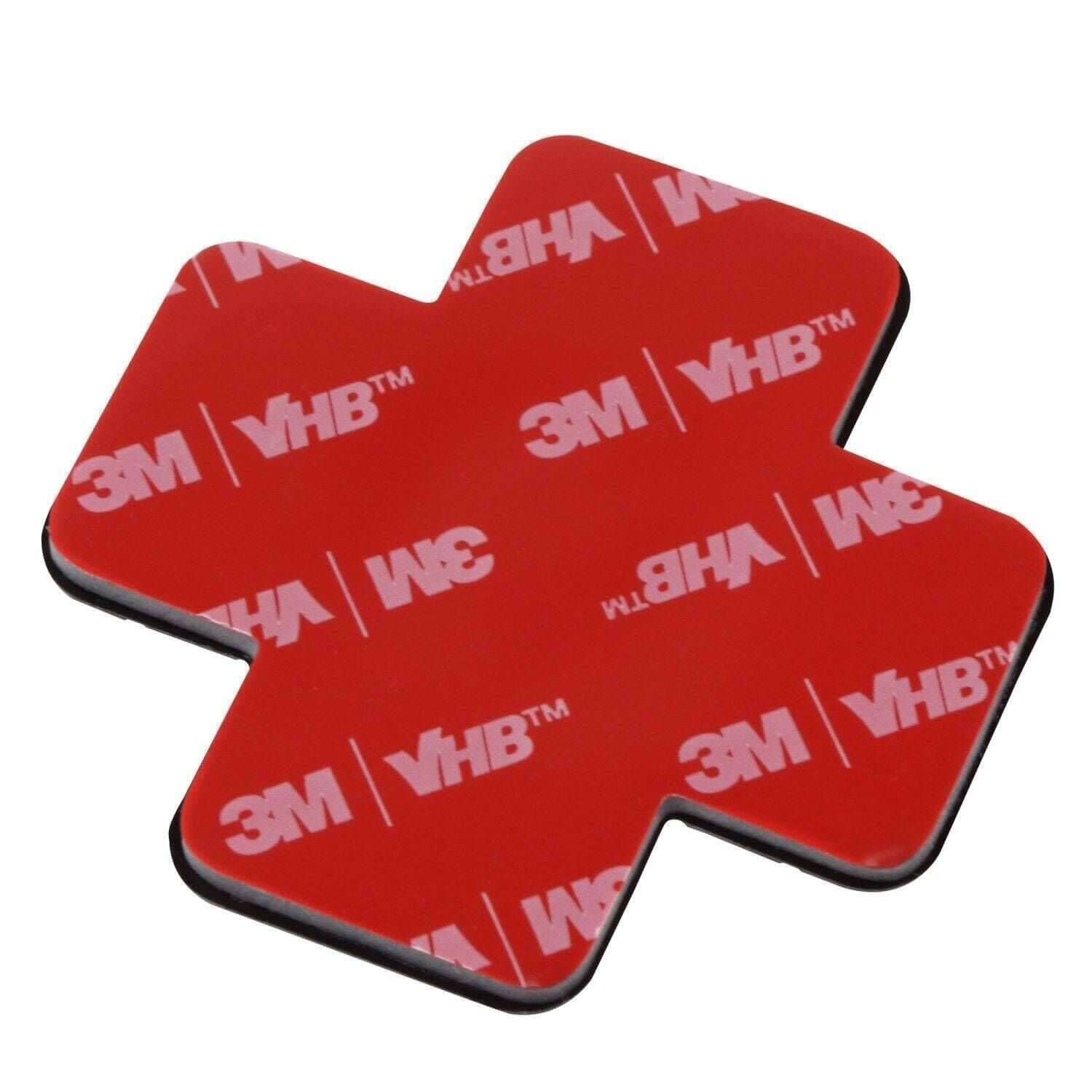

• The 3M VHB tape is a single use adhesive and is not reusable
