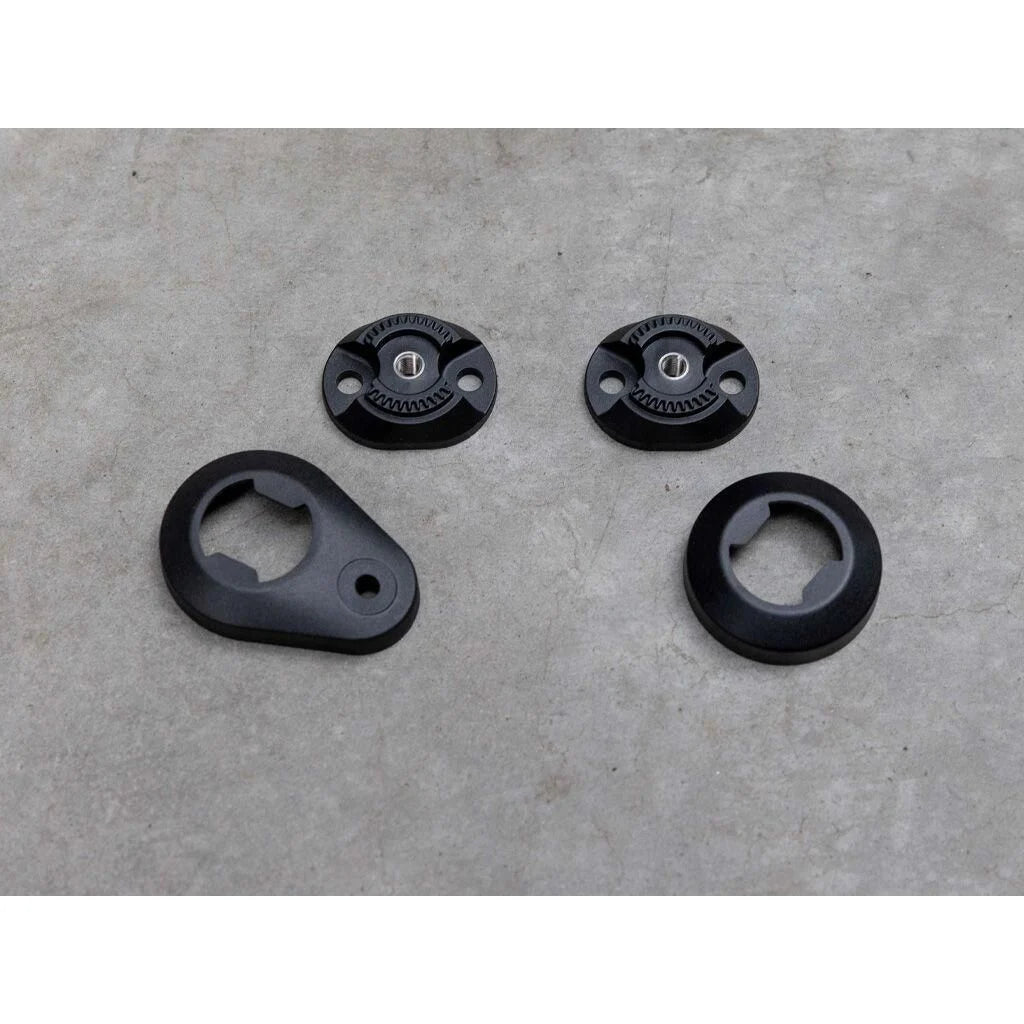

Quad Lock 360 Concealed Through Cable Small Base, QLP-360-CCS

Secure your mount using the Quad Lock 360™ Concealed Small Bases. Two-hole mounting pattern with a small footprint and a cover to conceal the mounting screws and give a clean look. Once a Quad Lock 360™ Arm or Head is mounted on top the glamour cover is secured into place.

Features:

• Tough glass-filled nylon
• Stainless steel hardware
• Glamour cover to hide the screws
• Suits flat surfaces only
• 25 mm (15/16") hole pitch
• M5 or 10G (gauge 10) pan head screws
• Grommet compatible with Quad Lock® 12V - 24V Waterproof Wireless Charging Head cable
• Grommet not compatible with the following cables: USB-A to USB-C cables, USB-C to USB-C cables, SAE connector cables, Quad Lock® Motorcycle USB Charger cable, Quad Lock® 12V to USB Smart Adaptor cable, Quad Lock® USB Weatherproof Wireless Charging Head

Included:

• 1 x Quad Lock® Concealed Through Cable Small Base with cover
• 1 x Quad Lock® 10mm Spacer
• 1 x M5 x 30 Countersunk hex socket screw (for connecting Spacer to Lever Head or Quad Lock 360™ Arms)
• 1 x M5 x 45 Countersunk hex socket screw (for connecting Spacer to Weatherproof Wireless Charger)

Note: Mounting screws not included.

Smartphone Mounting For An Active Lifestyle

Quad Lock 360 allows customers to build a mount to suit their active lifestyle. With over 200 different combinations, customers are now able to configure the perfect mount for their specific application, such as boating, kayaking, aviation, music, and off-road activities to name a few.

OVER 200 CONFIGURATIONS

Quad Lock 360 consists of a Base, an Arm (optional) and a Head. Users can also incorporate a Vibration Dampener if necessary or USB Charger if they want to charge their device and the Weatherproof Wireless Charging Head is not a suitable option.

FULLY CUSTOMIZABLE

Each component is sold separately, allowing for full customization and selection of HEAD, ARM, BASE and ACCESSORY parts suitable for your chosen application.
