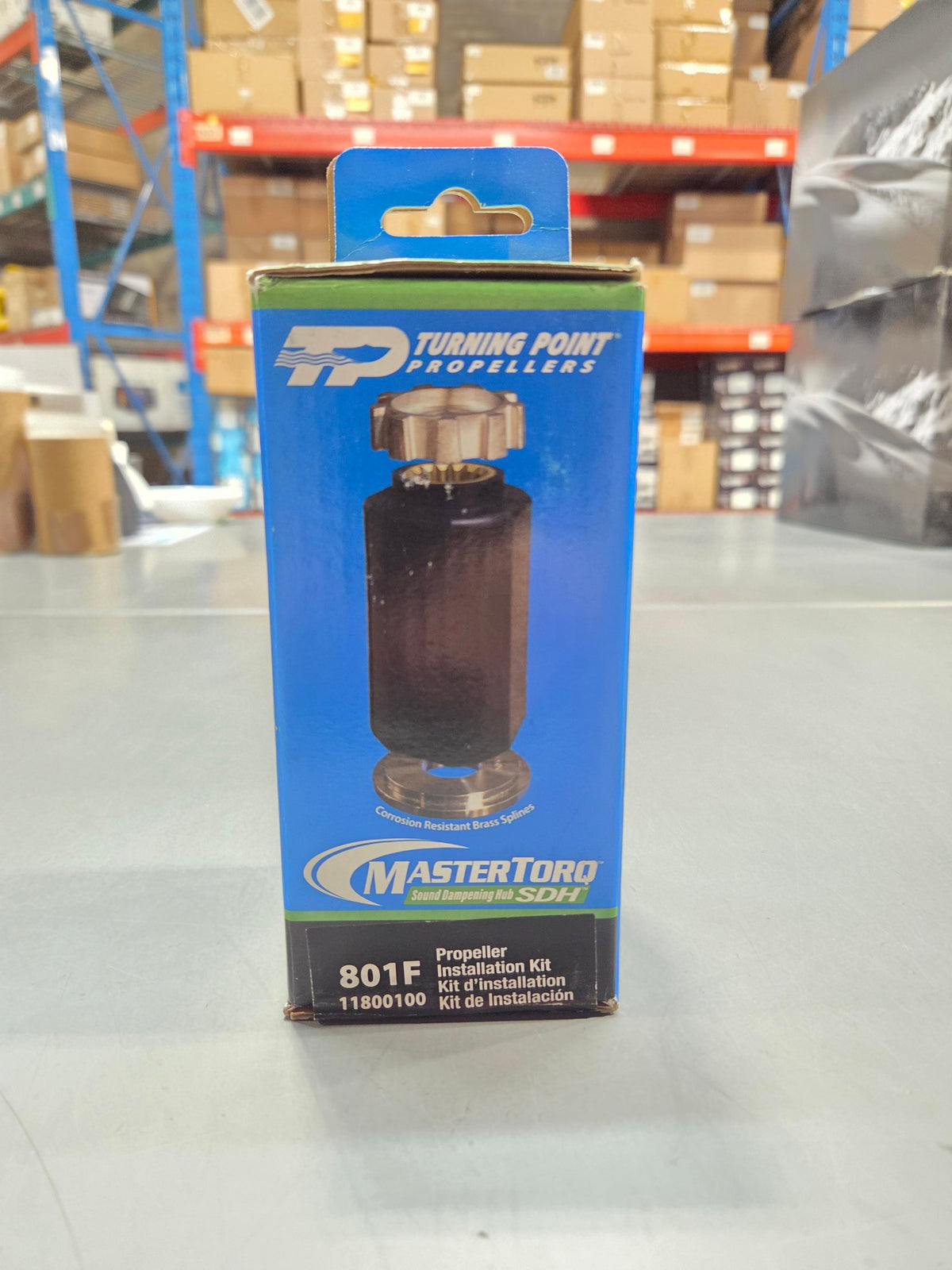

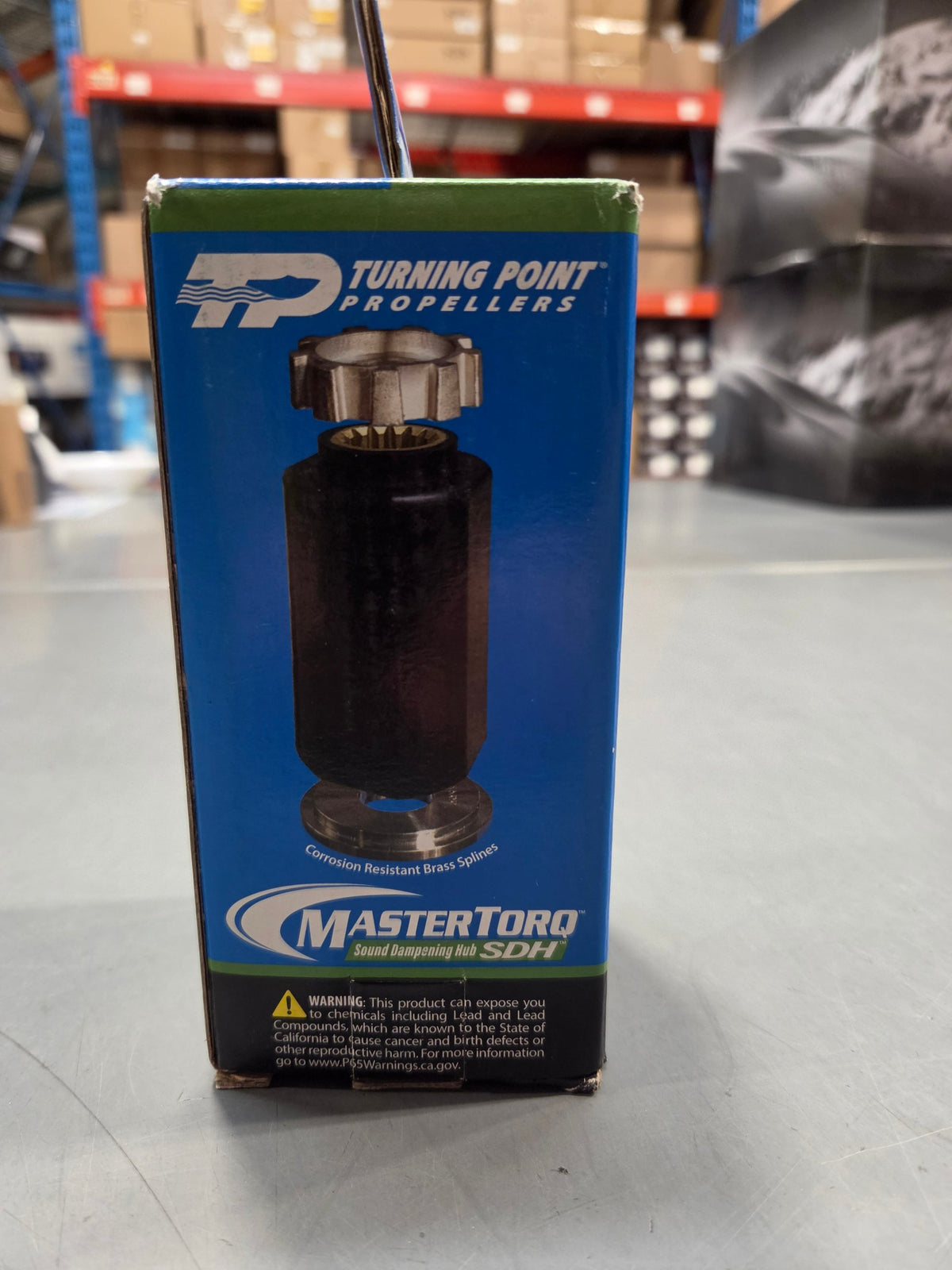

Turning Point MasterTorq Sound Dampening Propeller Hub Kit 801F for Mercury & Mariner Outboards - 11800100 | CLEARANCE

The Turning Point MasterTorq Sound Dampening Propeller Hub Kit 801F, 11800100 is a genuine Turning Point Propellers hub kit for Mercury and Mariner outboards from 40 HP and up. It is one of the best propeller hub upgrades for noisy Mercury lower units because it combines the shift-shock and vibration dampening of a pressed-in rubber hub with the easy, by-hand replaceability of a drop-in hub.

The MasterTorq 800 Series SDH (Sound Dampening Hub) uses next-generation hybrid hub technology. It resolves a common outboard problem where noise at idle is transmitted through the lower unit by slack in the shift dog clutch assembly. A specially designed keyway system and a hi-tech polymer absorb shift shock and harmful vibrations, and the hub is engineered not to let loose and spin over time under normal use, a common problem with pressed-in rubber hubs. Some competing dampening hubs turn into a solid hub once they exceed their maximum flex point, which raises the risk of lower unit damage on impact. MasterTorq SDH is designed to break away like Turning Point's industry-leading MasterGuard® hubs, giving your gearcase more protection. Its small-diameter design allows more exhaust flow for more usable horsepower, and it adapts to your OEM thrust washer and prop nut.

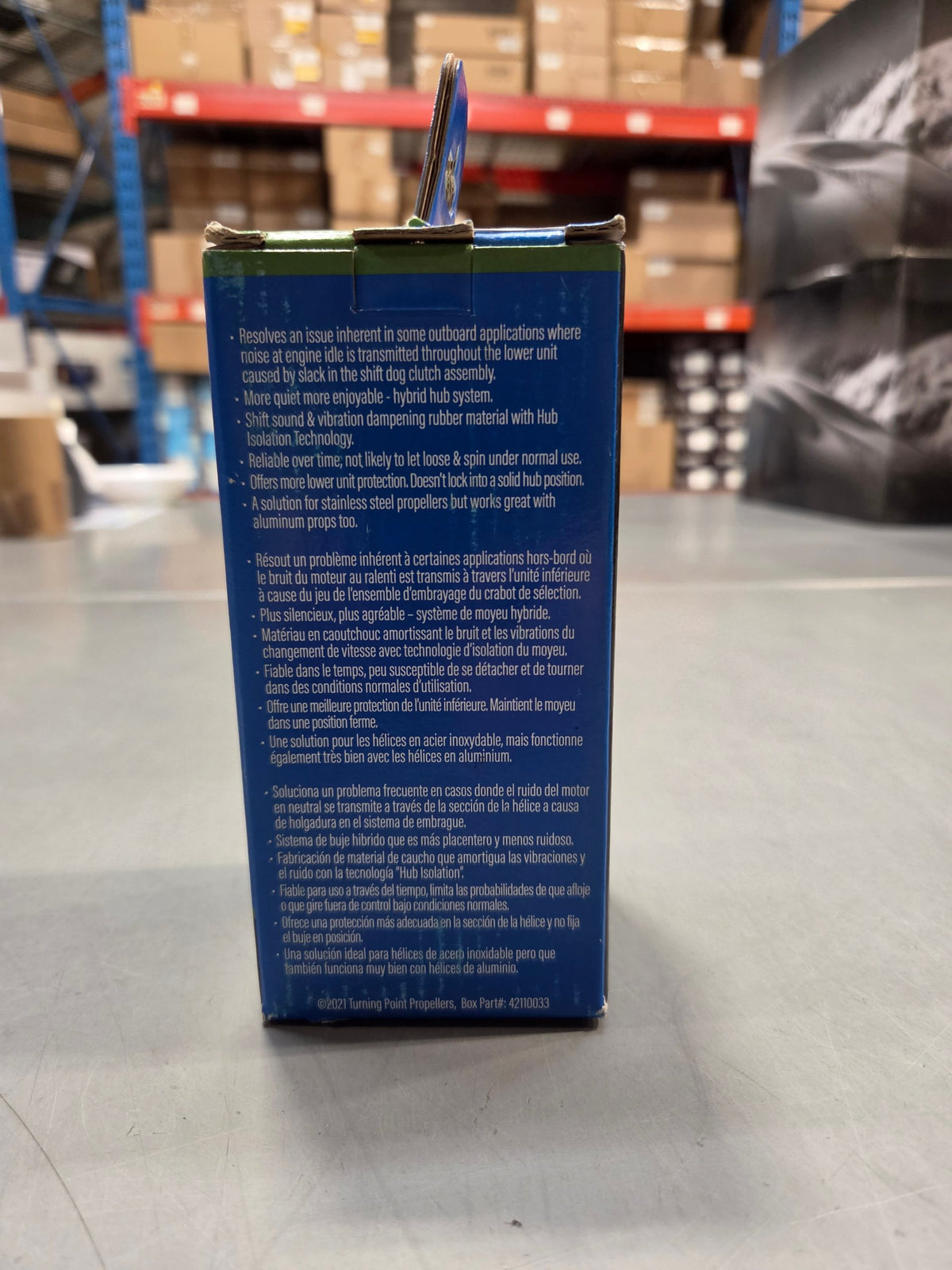

Features:

• Resolves idle noise transmitted through the lower unit caused by slack in the shift dog clutch assembly
• Quieter, more enjoyable ride with a hybrid hub system
• Shift sound and vibration dampening rubber material with Hub Isolation Technology
• Corrosion-resistant brass splines
• DIY design: easily replaceable by hand, no hub press needed
• Reliable over time: not likely to let loose and spin under normal use
• More lower unit protection: breaks away and does not lock into a solid hub position
• Small-diameter design allows more exhaust flow and higher horsepower
• Adapts to the OEM thrust washer and prop nut
• A solution for stainless steel propellers that works great with aluminum props too

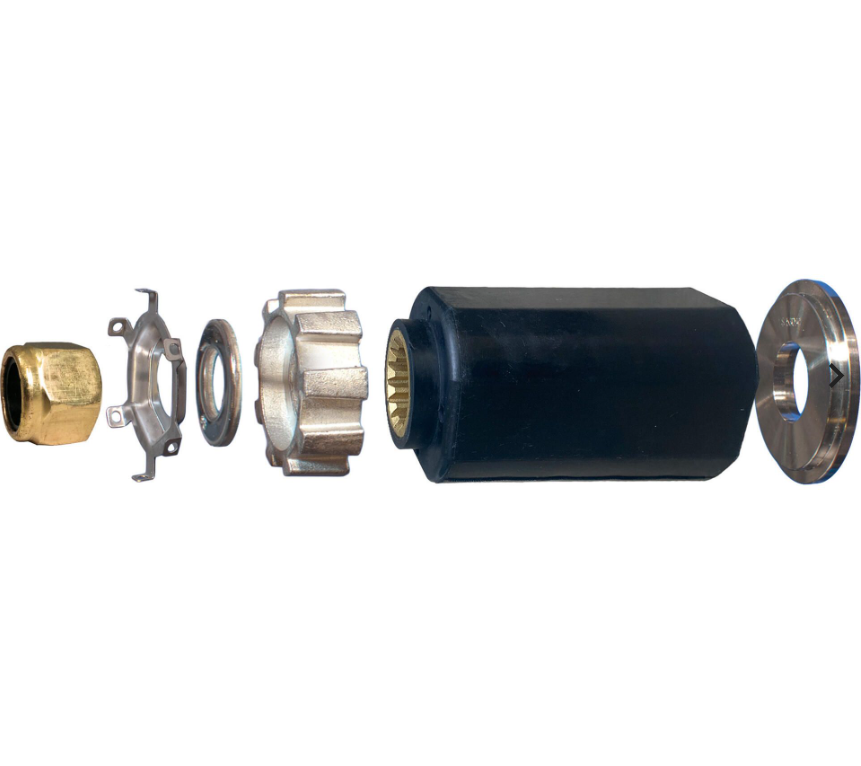

• Includes: hub assembly, prop nut spacer and installation instructions
• Limited one-year hub warranty

Fitment:

Mercury / Mariner:

• 15-spline prop shaft
• Not for 1977 and older models
• Not for ProXS or Verado models with a 1.25" prop shaft
• 2 and 4 stroke 40 to 60 HP CT / Bigfoot
• 70 HP (1987–1989)
• 75, 80 HP (1978–1989)
• 90, 100, 115, 125, 140 HP
• 150 XR4 / XR6 (through 1993, including equivalent Mariner Magnum I, II, III)
• FourStroke and SeaPro 4-cylinder 40 to 75 HP
• FourStroke and SeaPro 90 CT, 115 CT, 150 HP, 200 to 300 HP
• 115 HP ProXS CT only
• V6 135 to 300 HP
• Verado 135 to 300 HP (not HD)
• OptiMax 75, 90, 115, 125, 150, 200, 250 HP

Propellers are sold without hubs, so a hub kit is required to install a propeller. Please confirm fitment for your engine with the Turning Point Prop Wizard before ordering.

Specifications:

• Brand: Turning Point Propellers
• Series: MasterTorq 800 Series SDH (Sound Dampening Hub)
• Model Number: 801F
• Part Number: 11800100
• Alternate Part Number: 708-11800100
• UPC: 652480207143
• Engine Brands: Mercury, Mariner
• Horsepower: 40 HP and above
• Prop Shaft: 15 spline
• Spline Material: Corrosion-resistant brass
• Hub Type: Hybrid sound dampening drop-in hub
• Package Includes: Hub assembly, prop nut spacer, installation instructions
• Installation Instructions: tpprops.com/801F
• Origin: Designed and engineered in USA, made in Malaysia
• Warranty: Limited 1-year hub warranty
